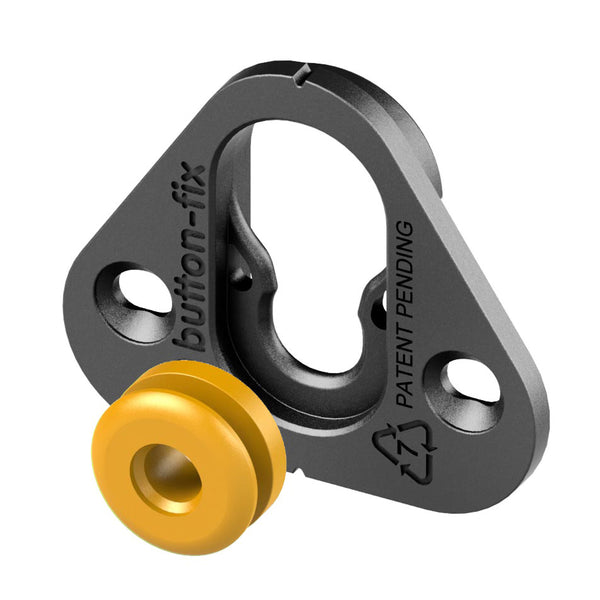

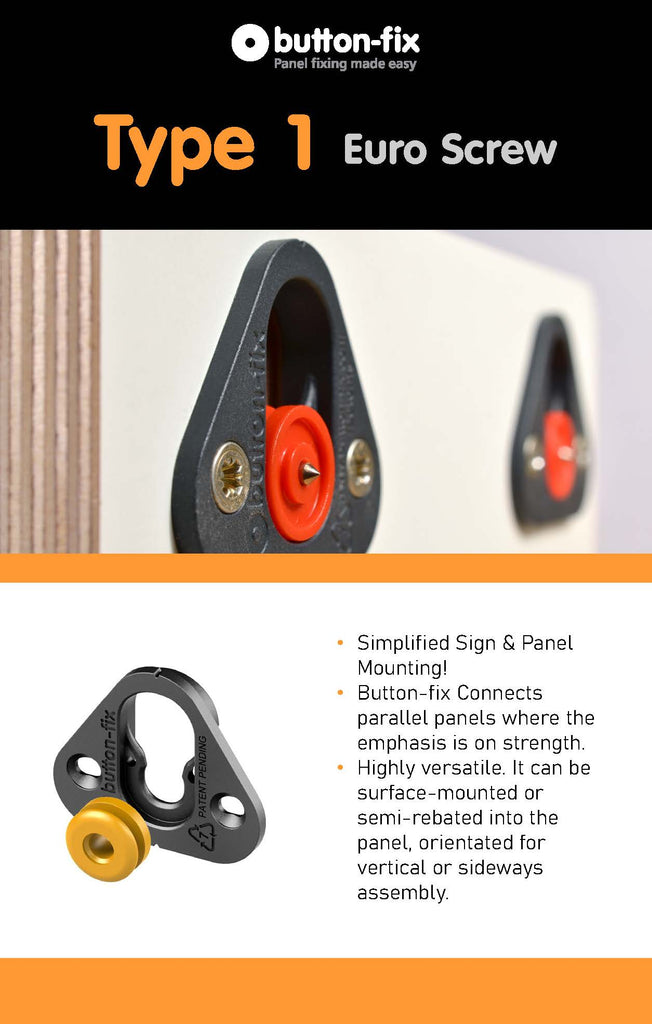

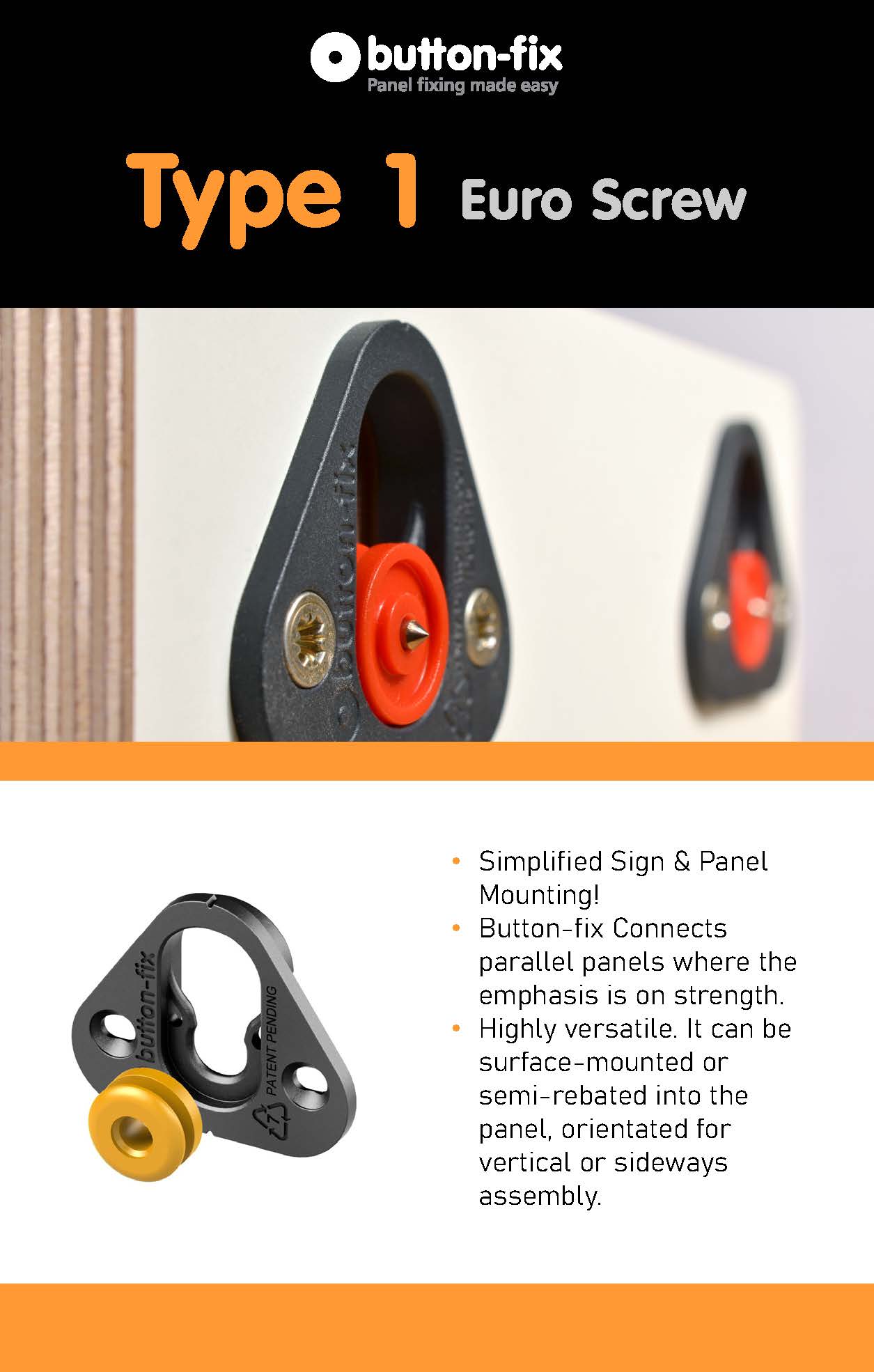

Button Fix Type One - Euro Screw

Type 1, Euro Screw

• Simplified sign and panel mounting!
• Button Fix connects parallel panels where the emphasis is on strength
• Highly versatile. It can be surface mounted or embedded into the panel, orientated for vertical or sideways assembly
• Our robust and reliable original fastener

Connects parallel panels where the emphasis is on strength. Highly versatile, it can be surface-mounted or semi-rebated into the panel, orientated for vertical or sideways assembly.

Using Type 1 Button-fix

When a panel fitting with proven strength is required, the Type 1 Button-fix is the one to use.

Typical uses include:

• Wall & ceiling panels

• Acoustic panels

• Mirror panels

• Shelf units & shop displays

• Upholstered panels & banquette seating

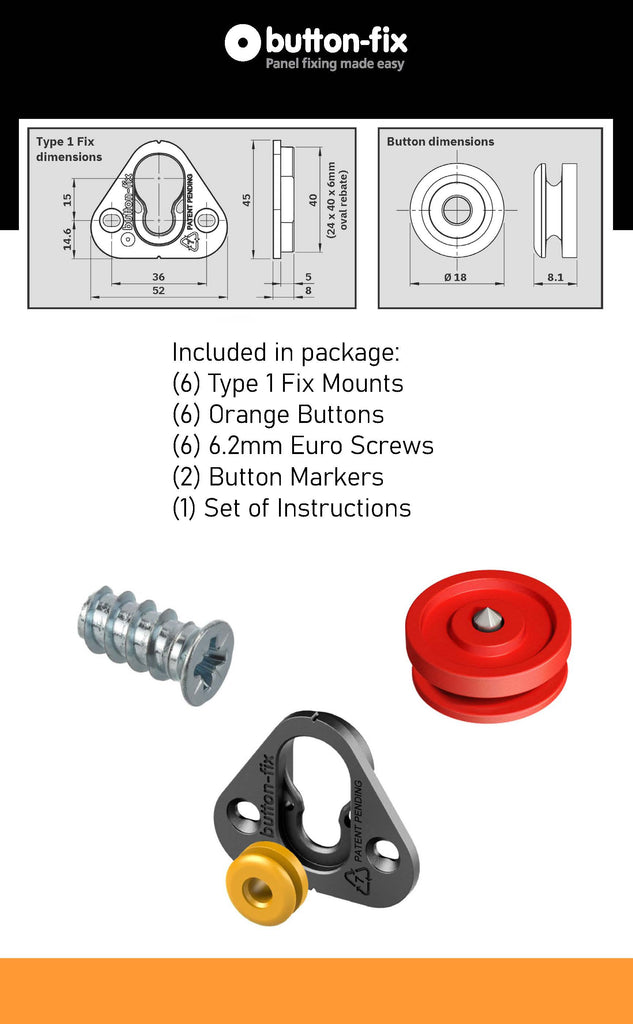

One Package comes with

• (6) Type 1 Fix Mounts
• (6) Orange Buttons

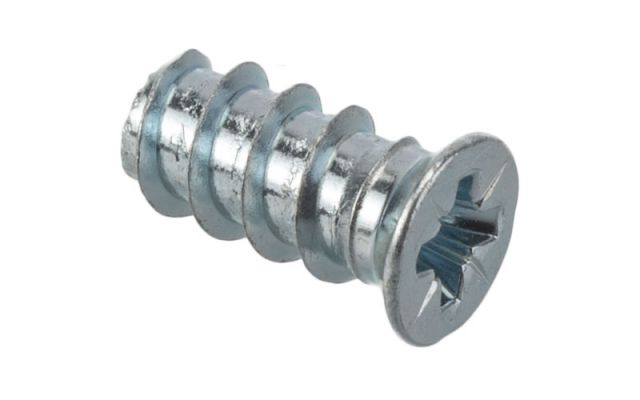

• (6) 6.2mm Euro Screws

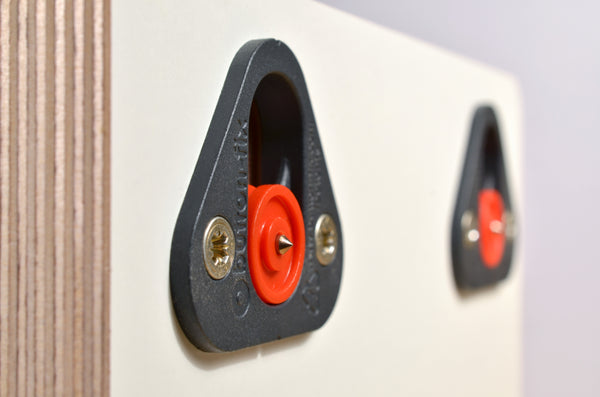

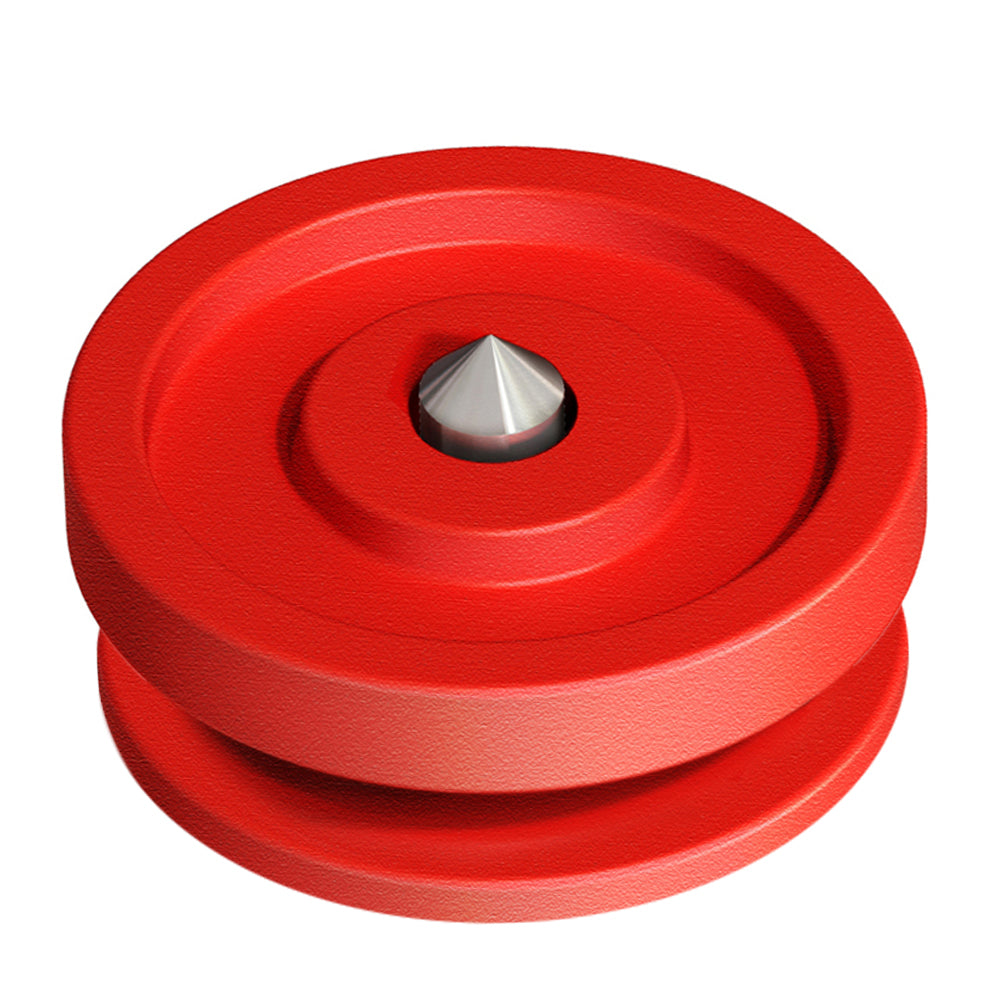

• (2) Button Markers
• (1) Set of Instructions

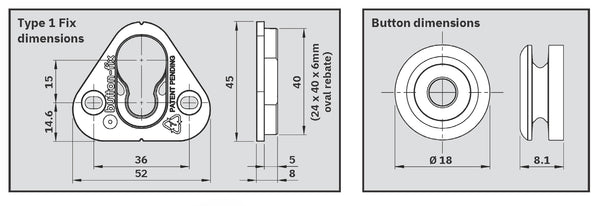

When surface-mounted, panel gap = 8mm

When rebated, panel gap = 3mm

The Fix is moulded from 30% glass filled nylon PA6

The Button is moulded from 30% glass filled nylon PA6

Manufactured in the UK

(#2) Button Fix: Type 1 Euro Screw
