Button Fix - Flush Fix with Wood Screws

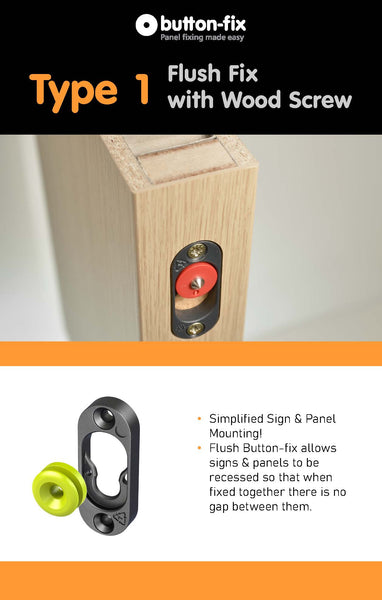

Type 1, Flush Fix with Wood Screws

• Simplified sign and panel mounting!
• Button Fix connects parallel panels where the emphasis is on strength
• Highly versatile. It can be surface mounted or embedded into the panel, orientated for vertical or sideways assembly
• Our robust and reliable original fastener

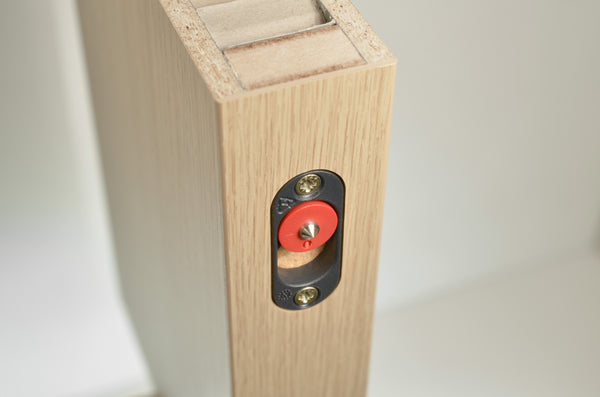

A fully-recessed connector solution

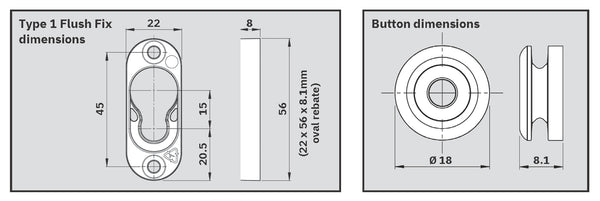

For applications where panel-to-panel contact is required. It fits a simple oval rebate and can be rebated into the edge of a panel of at least 28mm thick or the face of a panel of at least 18mm thick.

Using Type 1 Flush Button-fix

Like other Button-fix products, Type 1 Flush Button-fix allows panels to be recessed so that when fixed together there is no gap between them.

Typical uses include:

• Reception & bar counter cladding
• Furniture construction
• Exhibition stand construction
• Video/media walls

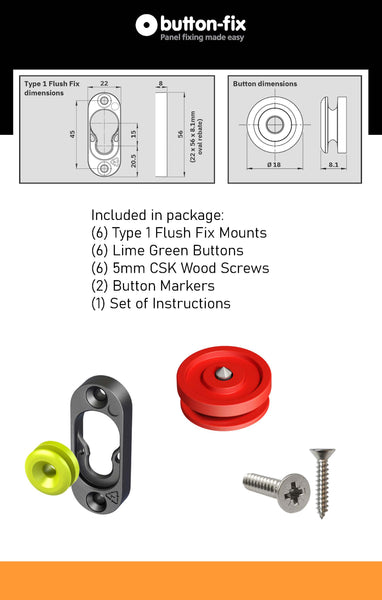

One Package comes with

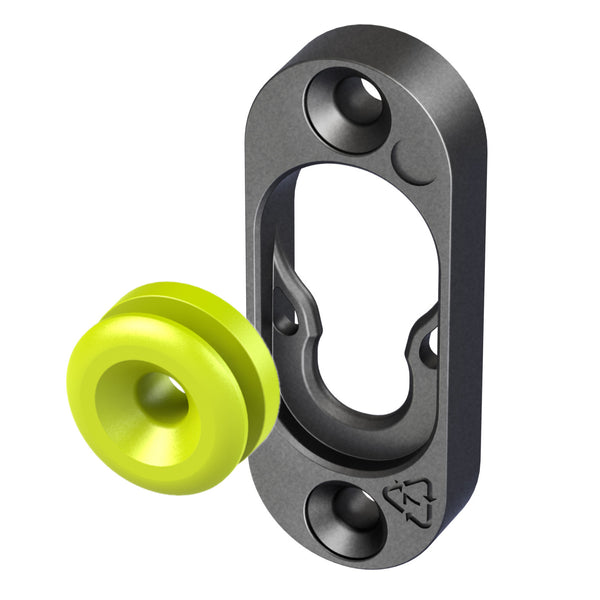

• (6) Type 1 Flush Fix Mounts
• (6) Lime Green Buttons

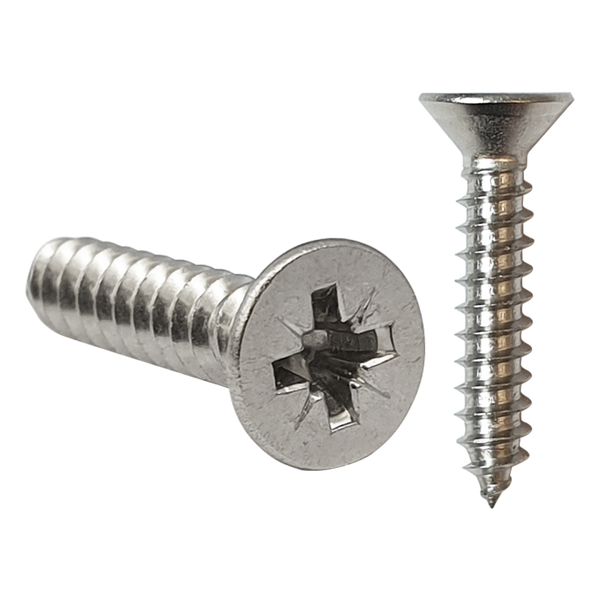

• (6) 5mm CSK Wood Screws

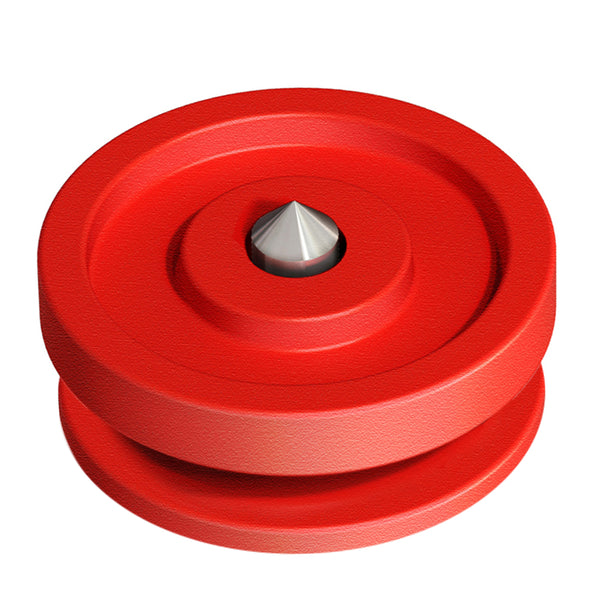

• (2) Button Markers
• (1) Set of Instructions

The Fix is moulded from 30% glass filled nylon PA6

The Button is moulded from 30% glass filled nylon PA6

Manufactured in the UK

(#5) Button Fix: Type 1 Flush Fix with Wood Screws
